| Specification : |

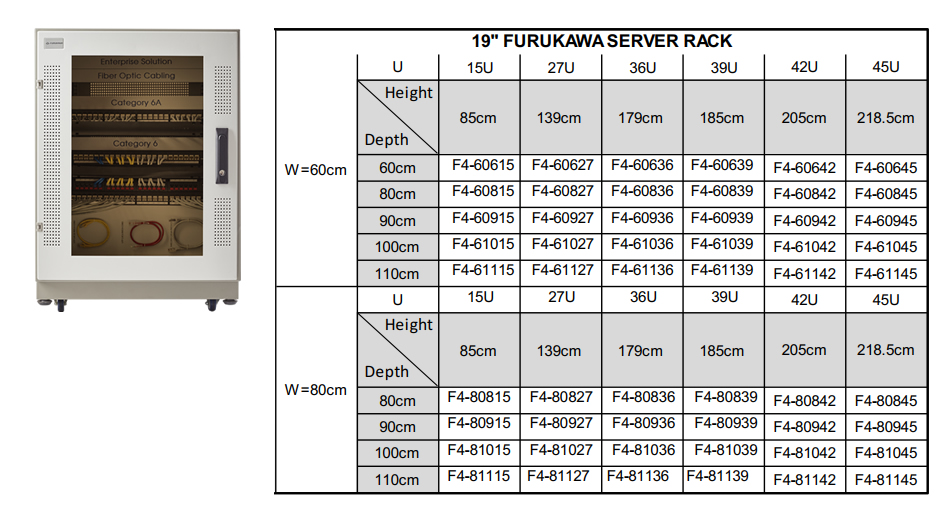

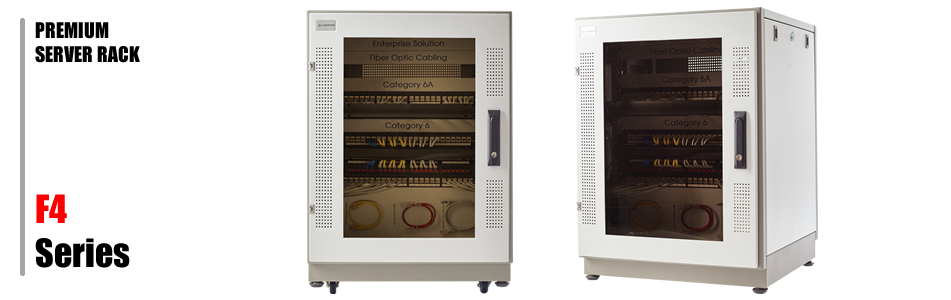

| • 19” FURUKAWA SERVER RACK design & produce under ANSI/EIA-310D – 1992 |
| (Rev.EIA-310-C), IEC60297-1, IEC 60927-2, BS 5954 : Part2, DIN 41494 standard |
| • Modular knock down system for easily transport & assembly |
| • Produced from Electro-Galvanized Steel |
| - Front – Rear, Side cover material thickness 1.5mm. |
| - Mounting Angle Pole , Frame structure, Bottom Base material thickness 2.0mm. |
| - Support base for Caster material thickness 3.0mm. |
| • Special design 4 Mounting Angle Pole in C-shape for increasing strength for heavy |
| equipment with square mounting hole size 9.5x9.5mm. |
| • Adjustable Mounting Pole position with U screen for easily installation. |
| • Front door panel is perforated attached with premium grade Acrylic thickness 5mm. |
| Grey rubber also attached for each door to protect dust. The front door is security |
| Locks by swing handle with master key system. |
| • Rear door is full perforated panel. Grey rubber also attached for each door to protect |
| dust. The rear door come with security camlock with master key system. |
| • 3 Premium grade PVC Hinges for each door were attached with easily open and close. The frame structure also provided the |
| common hole for any users for easily swap the direction when open-close the door by themselves. |
| • Side Panels come together with 2 Premium grade slide latches per panel and security cam lock with master key system Roof |
| • Cover also designed for installing up to 6 ventilating fan which compatible with 1x 4”, 2x4” , 3x4” fan set |
| • Bottom Base also designed for heavy load with soft slide shutter function for all cables. Soft slide shutter also come |
| with the soft grey sponge to protect insect and small animals to enter the rack from bottom. |
| • Adjustable levelling feet for aligns on uneven surface also cover with ABS material in order to protect Electrostatic and ground reason. |
| • Caster is Nylon six and 360 degree swivel plate which can be easily moving. Each caster can pass static load of 100 kg./caster. |
| • Rack Color is New Shine Two-Tone (Light Grey-Dark Grey) which using Electro static Powder Coating system |
| • For Grounding system also installing 2 ground cable size 2.5mm (Yellow-green color) length 18cm.connect the frame with front and rear door. For |
| side panels also intall 4 ground cable (Yellow-green color) length 13cm. |
| • Screw sets consist of M6 screw, Captive nut, Plastic washer. Screw and captive nut is Nickel plating. |
| • 19” FURUKAWA SERVER RACK are manufactured under ISO9001 : 2008 and ISO 14001 system. |
