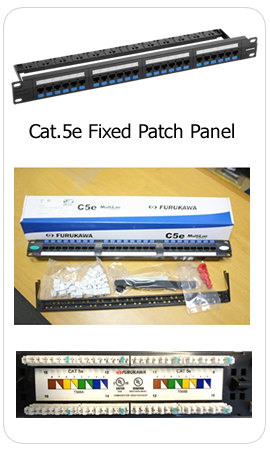

CAT 5E Patch Panel
Part Number Description Type Certification Specification
35030152 UTP MULTILAN PATCH PANEL CAT.5E 24P T568A/B (FIXED PANEL) FIXED PANEL RoHS Compliant
ISO 9001, ISO14001
UL Listed
ETL Verified

Option for Patch Panel (Unload)
Part Number Description Type Certification Specification
35050238 UTP MODULAR PATCH PANEL  24P WITH IDENTIFICATION ICONS 1 RU (UNLOAD) Unshielded ISO 9001, ISO14001
RoHS Compliant
UL Listed
35050385 UTP MODULAR PATCH PANEL  24P 1/2 RU (UNLOAD)
35050274 UTP ANGLED MODULAR PATCH PANEL 24P 1 RU (UNLOAD)
35050269 UTP ANGLED MODULAR PATCH PANEL 48P 2 RU (UNLOAD)


General Characteristics

Category

 5e

Bandwidth

 100 Mhz

Application

 1. Exceeds physical and electrical requirements of EIA/TIA -568-c.2
2. Cable according with RoHS directive (Restriction of Hazardous Substances)
3. Can be used with all of the following protocols.
a) GIGABIT ETHERNET, IEEE 802.3z, 1000 Mbps;
b) 100BASE-TX, IEEE 802.3u, 100 Mbps;
c) 100BASE-T4, IEEE 802.3u ,100 Mbps;
d) 100vg-AnyLAN, IEEE802.12, 100 Mbps;
e) ATM -155 (UTP), AF-PHY-OO15.000 y AF-PHY-0018.000, 155/51/25 Mbps;
f) TP-PMD , ANSI X3T9.5, 100 Mbps;
g) 10BASE-T, IEEE802.3, 10 Mbps;
h) TOKEN RING, IEEE802.5 , 4/16 Mbps;
i) 3X-AS400, IBM, 10 Mbps;
j) POWER OVER ETHERNET, IEEE 802.3af
4. Solutions: Commercial Building, Government, Financial, Health,
Education.

Type

 UTP

Connector type

RJ-45

Contacts

Phosphor bronze with 1.27 µm of gold and 2.54 µm of nickel

Certifications

UL Listed, ETL Verified and Channel for Fixed Panel

Rear Cable Organizer

Yes

Insertion cycles

≥750 RJ45 and ≥200 RJ11 y ≥200 in IDC block

Option for Patch Panel (Unload)
General Characteristics
Product Type TELECOMMUNICATION INFRASTRUCTURE ACCESSORY
Product Family FISACESSO
Standard RoHS Compliant
Installation Environment Indoor
Compatibility All FCS products

Compatibility

 Cabinets 19"

Advantage

 Mounts to standard EIA/TIA-310 19" rack;
Provided with rear cable manager that allows individual cable organization
(one by one);
Front panel with labels and crylic protection for ports identification;
Compatible with UTP modular Keystone Jacks Cat.5e, Cat.6 and Cat.6A;
Compatible with Optical Adpaters and Blank inerts;
Compatible with UTP Furukawa Modular Jacks, which allow connections
T-568A and T-568B;
Supports up to 24-48 UTP modular Keystone Jacks;
Provided with blue and red identification icons;
Support UTP Furukawa Modular Jacks that can be mounted also in face
plates;
Allows individual removal of the modular Keystone Jack from the back part
for an easy installation and maintenance in the future;
Brand identification in the front panel.
Identification Furukawa frontal logo

Type

 U/UTP and F/UTP

Ports quantity

24 to 48

Height

1/2 RU, 1 RU or 2 RU

Identification icons

Red and Blue

Material

Steel

Compatibility

Cat. 5E, 6 and 6A Connectors Optical adapters
Standard TIA/EIA - 569 C - COMMERCIAL BUILDING STANDARD FOR TELECOMMUNICATIONS
PATHWAYS AND SPACES
TIA/EIA - 310 E - CABINETS, RACKS, PANELS, AND ASSOCIATED EQUIPAMENT

Technology Innovation and quality in certified and recognized products.

Copper Twisted Pair

EIA/TIA 568, dated 1991, was the first American standard for structured cabling systems. In 1995, the standard was first amended and was called EIA/TIA 568 A, and in May of 2001, it was transformed into 568 B. A new revision is in force and got the nomenclature ANSI/TIA 568 C2. All these standards were harmonized with the ISO/IEC 11801 standard, amended and updated in 2002. The objective of these standards is to provide a flexible and reliable cabling system, able to be connected with equipment from different manufacturers. Another differential is the easy expansion of an already existing network.




Related Certifications

  Certifications




ETL Verified, ETL Listed and Channel Verified




UL Listed
