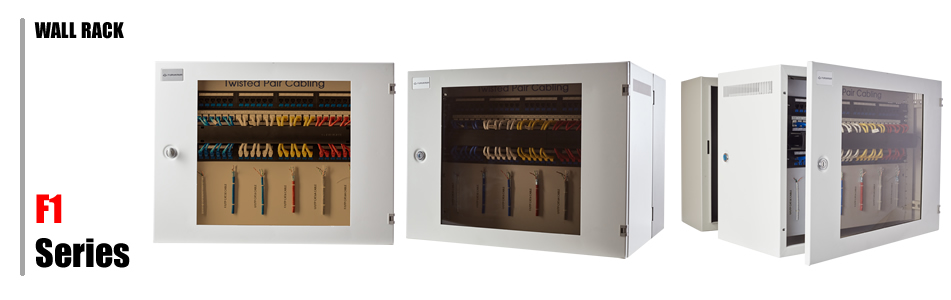

WALL RACK

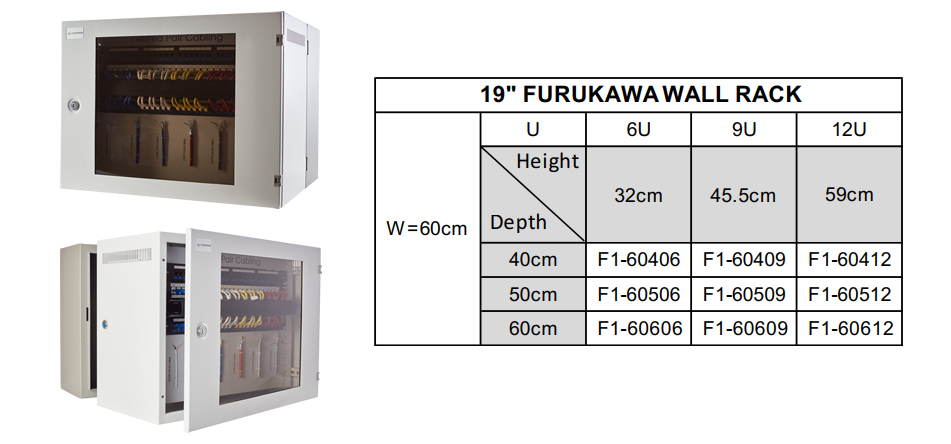

No. Part Number Description Specification
English 		ข้อมูลผลิตภัณฑ์
ภาษาไทย
1 F1-60406C 19” PREMIUM EXPORT WALL RACK Consumer 6U, Deep 40 cm. Cold roll steel
2 F1-60406 19” PREMIUM EXPORT WALL RACK  6U, Deep 40 cm. galvanize steel
3 F1-60409 19” PREMIUM EXPORT WALL RACK  9U, Deep 40 cm. galvanize steel
4 F1-60412 19” PREMIUM EXPORT WALL RACK  12U, Deep 40 cm. galvanize steel
5 F1-60506 19” PREMIUM EXPORT WALL RACK 6U, Deep 50 cm. galvanize steel
6 F1-60509 19” PREMIUM EXPORT WALL RACK 9U, Deep 50 cm. galvanize steel
7 F1-60512 19” PREMIUM EXPORT WALL RACK 12U, Deep 50 cm. galvanize steel
8 F1-60606 19” PREMIUM EXPORT WALL RACK 6U, Deep 60 cm. galvanize steel
9 F1-60609 19” PREMIUM EXPORT WALL RACK 9U, Deep 60 cm. galvanize steel
10 F1-60612 19” PREMIUM EXPORT WALL RACK 12U, Deep 60 cm. galvanize steel
11 F0-60027 19" Premium Open Rack 27U
12 F0-60036 19" Premium Open Rack 36U
13 F0-60042 19" Premium Open Rack 42U
14 F0-60045 19" Premium Open Rack 45U
Specification :
• 19” FURUKAWA WALL RACK design & produce under ANSI/EIA-310D – 1992 (Rev.EIA-310-C),
IEC60297-1, IEC 60927-2, BS 5954 : Part2, DIN 41494 standard
• WALL RACK consists of 3 parts (Front door, Center Part and Hinged Base Box), center
part can be opened and locked with Base box by hinged.
• Produced from Electro-Galvanized Steel thickness 1.2 mm., and Mounting Angle Pole
steel thickness 2.0mm.
• Mounting Angle Pole in L-shape with square mounting hole size 7.0x7.0mm.
Adjustable Mounting Pole position with U screen for easily installation.
• Front door panel attached with premium grade Acrylic thickness 5mm. Grey rubber also
attached for each door to protect dust. The front door come with security Cam lock with
master key system.
• Center part come with security lock with same master key as front door. There are special hinges at the bottom of this part. The
top of center part can install maximum 3 ventiventilating fan which compatible with 1x 4”, 2x4” , 3x4” fan set.
• There are ventilation holes along the side of center part.
• Hinged Base Box has bolt hole which made from 2 layer steel thickness 2.4mm. There are 10x10cm. square hole on the top
and the bottom for cabling.
• 3 Premium grade PVC Hinges for each door were attached with easily open and close. The frame structure also provided The
common hole for any users for easily swap the direction when open-close the door by themselves.
• Rack Color is New Shine Two-Tone (Light Grey-Dark Grey) which using Electro static Powder Coating system Screw
sets consist of M6 screw, Captive nut, Plastic washer. Screw and captive nut is Nickel plating.
• 19” FURUKAWA WALL RACK are manufactured under ISO9001 : 2008 and ISO 14001 system.
