DATA CENTER RACK

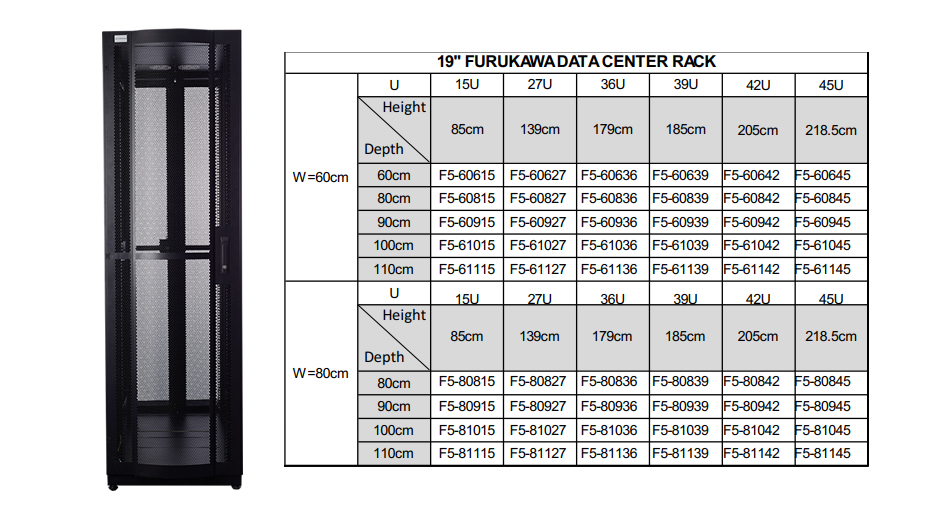

No. Part Number Description Specification
English 		ข้อมูลผลิตภัณฑ์
ภาษาไทย
1 F5-60615 19” PREMIUM EXPORT DATA CENTER RACK 15U, (60x60CM.)
2 F5-60627 19” PREMIUM EXPORT DATA CENTER RACK 27U, (60x60CM.)
3 F5-60636 19” PREMIUM EXPORT DATA CENTER RACK 36U, (60x60CM.)
4 F5-60642 19” PREMIUM EXPORT DATA CENTER RACK 42U, (60x60CM.)
5 F5-60645 19” PREMIUM EXPORT DATA CENTER RACK 45U, (60x60CM.)
6 F5-60815 19” PREMIUM EXPORT DATA CENTER RACK 15U, (60x80CM.)
7 F5-60827 19” PREMIUM EXPORT DATA CENTER RACK 27U, (60x80CM.)
8 F5-60842 19” PREMIUM EXPORT DATA CENTER RACK 42U, (60x80CM.)
9 F5-60845 19” PREMIUM EXPORT DATA CENTER RACK 45U, (60x80CM.)
10 F5-60915 19” PREMIUM EXPORT DATA CENTER RACK 15U, (60x90CM.)
11 F5-60927 19” PREMIUM EXPORT DATA CENTER RACK 27U, (60x90CM.)
12 F5-60942 19” PREMIUM EXPORT DATA CENTER RACK 42U, (60x90CM.)
13 F5-60945 19” PREMIUM EXPORT DATA CENTER RACK 45U, (60x90CM.)
14 F5-61027 19” PREMIUM EXPORT DATA CENTER RACK 27U, (60x100CM.)
15 F5-61036 18” PREMIUM EXPORT DATA CENTER RACK 36U, (60x100CM.)
16 F5-61042 19” PREMIUM EXPORT DATA CENTER RACK 42U, (60x100CM.)
17 F5-61045 19” PREMIUM EXPORT DATA CENTER RACK 45U, (60x100CM.)
18 F5-61142 19” PREMIUM EXPORT DATA CENTER RACK 42U, (60x110CM.)
19 F5-61145 19” PREMIUM EXPORT DATA CENTER RACK 45U, (60x110CM.)
20 F5-80827 19” PREMIUM EXPORT DATA CENTER RACK 27U, (80x80CM.)
21 F5-80842 19” PREMIUM EXPORT DATA CENTER RACK 42U, (80x80CM.)
22 F5-80845 19” PREMIUM EXPORT DATA CENTER RACK 45U, (80x80CM.)
23 F5-80942 19” PREMIUM EXPORT DATA CENTER RACK 42U, (80x90CM.)
24 F5-80945 19” PREMIUM EXPORT DATA CENTER RACK 45U, (80x90CM.)
25 F5-81042 19” PREMIUM EXPORT DATA CENTER RACK 42U, (80x100CM.)
26 F5-81045 19” PREMIUM EXPORT DATA CENTER RACK 45U, (80x100CM.)
27 F5-81142 19” PREMIUM EXPORT DATA CENTER RACK 42U, (80x110CM.)
28 F5-81145 19” PREMIUM EXPORT DATA CENTER RACK 45U, (80x110CM.)

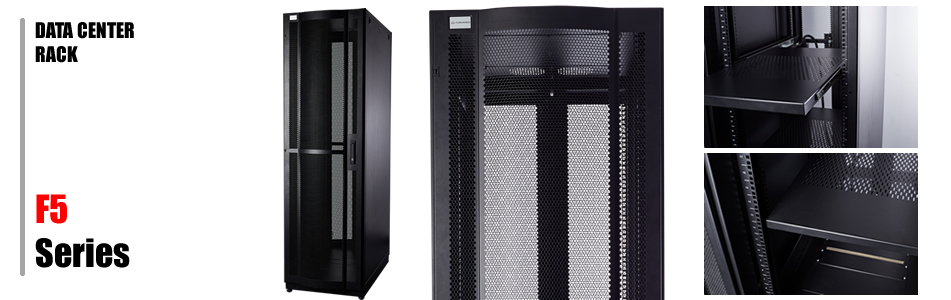

Specification :
19” FURUKAWA DATA CENTER RACK design & produce under ANSI/EIA-310D – 1992 (Rev.EIA-310-C),
IEC60297-1, IEC 60927-2, BS 5954 : Part2, DIN 41494 standard
Modular knock down system for easily transport & assembly
• Produced from Electro-Galvanized Steel
- Front – Rear, Side cover material thickness 1.5mm.
- Mounting Angle Pole , Frame structure, Bottom Base material thickness 2.0mm.
- Support base for Caster material thickness 3.0mm.
• Special design Mounting Angle Pole in C-shape for increasing strength for heavy
equipment with square mounting hole size 9.5 x 9.5mm.
• Adjustable Mounting Angle Pole position with U screen for easily installation.
• Front door panel is special Curve design with Perforated hexagon hole .
There are grey rubber attached for each door to protect dust. The security locks for
front door is Swing handle
• Rear door panel is designed to be double door for easy to use and save space.
Rear door is also perforated hexagon hole for quickly ventilating. The rear door come with security cam lock with master key system.
• Side Panels is solid steel come together with 2 Premium grade slide latches per panel and security cam lock with master key system
Roof Cover also designed for installing up to 6 ventilating fan which compatible with 1x 4”, 2x4” , 3x4” fan set
• ¢ Bottom Base also designed to be 3 Parts Plinth which can support the heavy load. There are soft slide shutter function for all cables.
Soft slide shutter also come with the soft grey sponge to protect insect and small animals to enter the rack from bottom.
• Adjustable Pedestal can levelling up to 180 degree for aligns on uneven surface. Levelling feet also cover with ABS material
in order to protect Electrostatic and ground reason.
Caster is Nylon six and 360 degree swivel plate which can be easily moving. Each caster can pass static load of 100 kg./caster.
• Rack Color is Black which using Electro static Powder Coating system
• ¢ For Grounding system also installing 2 ground cable size 2.5mm (Yellow-green color) length 18cm.connect the frame with front and rear door.
For side panels also intall 4 ground cable (Yellow-green color) length 13cm.
• Screw sets consist of M6 screw, Captive nut, Plastic washer. Screw and captive nut is Nickel plating.
19” FURUKAWA DATA CENTER RACK are manufactured under ISO9001 : 2008 and ISO 14001 system.
